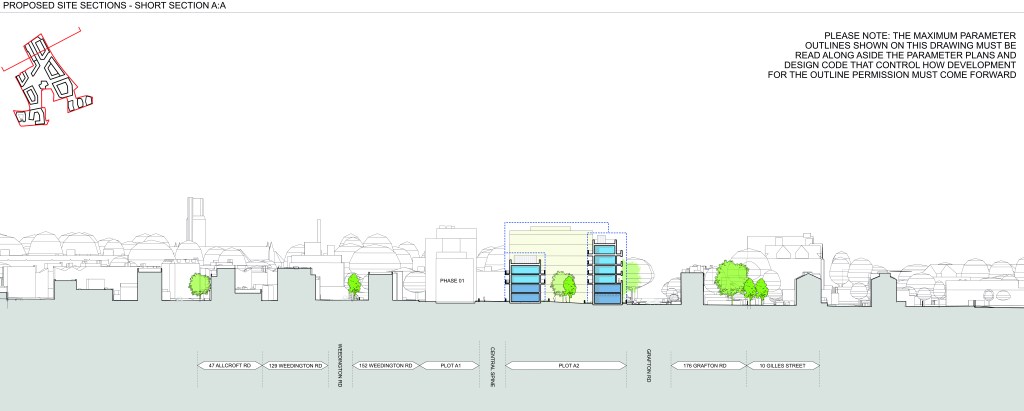

West Kentish Town Estate demolition and rebuild planning application ref. 2025/2667/P: new site section drawings through the proposed courtyard blocks .

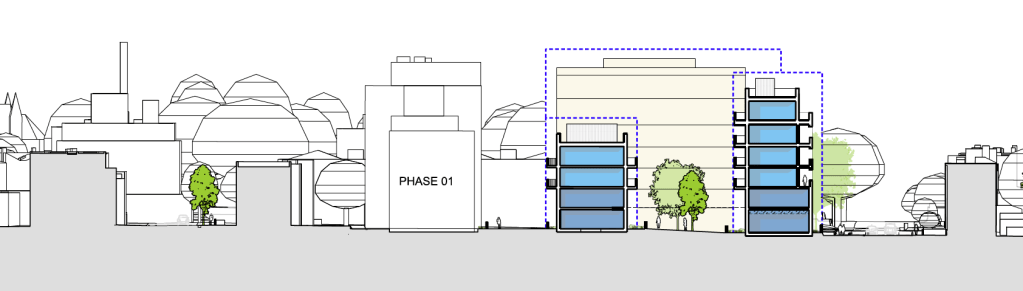

Nb. the dotted blue lines are the maximum permitted height and width of the new blocks, as defined by the ‘parameter plans’. The planning officer says “parameters of course are very crude and represent a worst case scenario”. That is what we are concerned will get built.
The ‘section’ drawing above is looking north towards Queens Crescent. The extract below shows the section cut through Weedington Road on the left and Grafton Road on the right:
Weedington Road ……………………………………………………………………………..Grafton Road
The ‘section’ drawing above is looking west, and cuts through the three big courtyard buildings proposed for Grafton Road. The extracts below shows the section cuts through Athlone Street first, and Queen’s Crescent second:

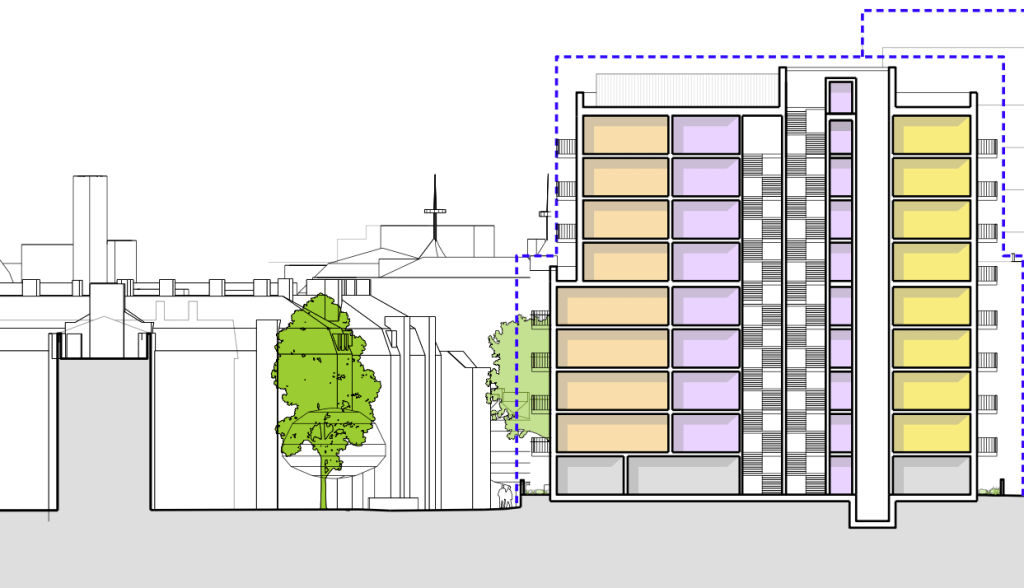

Athlone Street

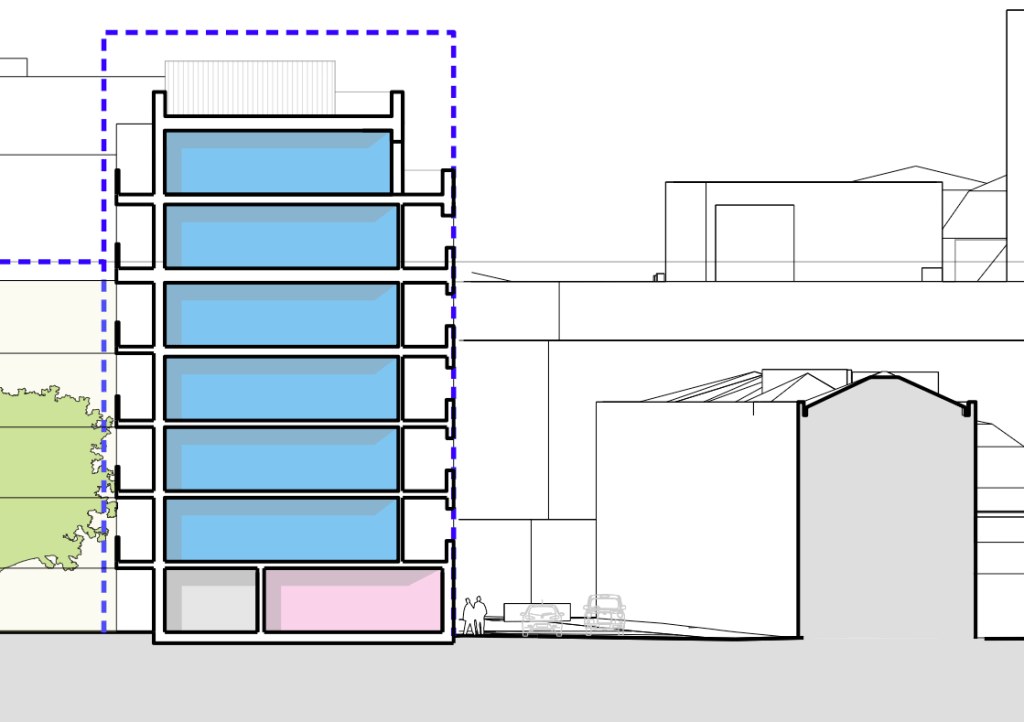

Queen’s Crescent

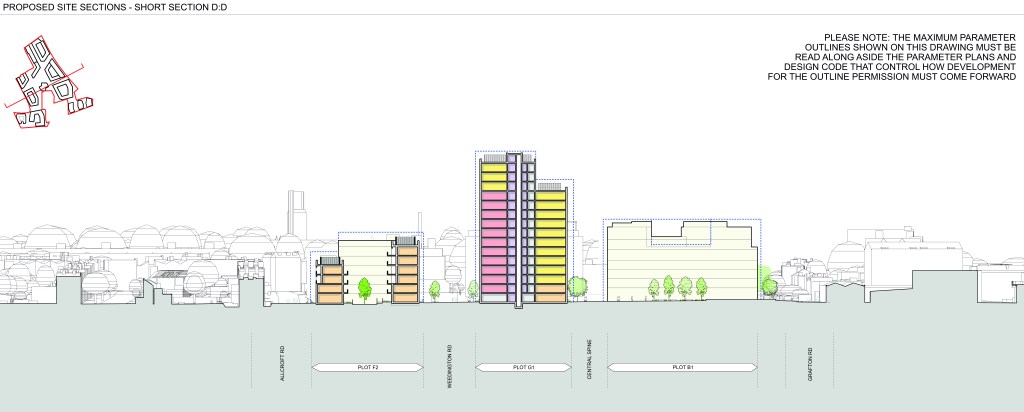

The ‘section’ drawing above is also looking north towards Queen’s Crescent, but further south than the first one. It cuts through one of the two courtyard buildings proposed for Allcroft Road and the new tower. It shows the end elevation of one of the large Grafton Road courtyard blocks. The extracts below shows the section cuts through Allcroft Road first, and Grafton Road second:

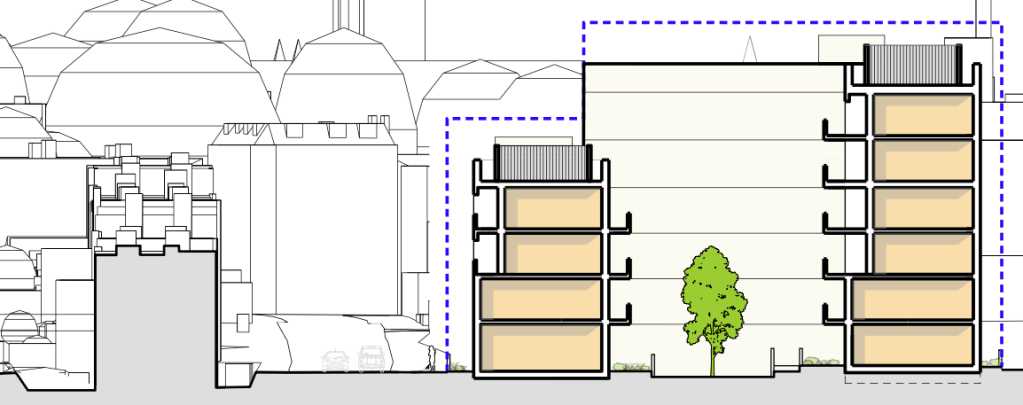

Allcroft Road

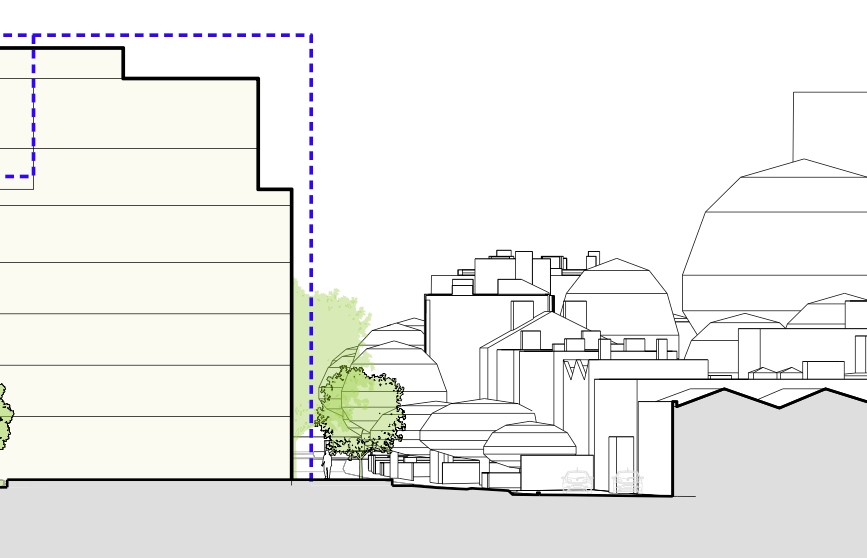

Grafton Road
